Tesla | Neurio Energy Meter Kit 3P | for load balancing Wall Connector

Tesla | Neurio Energy Meter Kit 3P | for load balancing Wall Connector

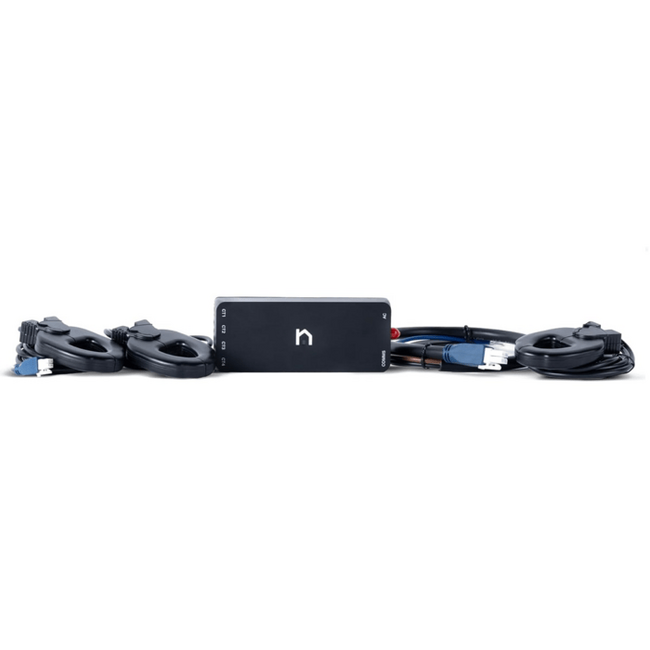

The Neurio Energy Meter Kit 3P is designed for load balancing in combination with a Tesla Wall Connector. The meter measures total power consumption across three phases and allows your EV charger to automatically use the remaining available power, for safe and efficient charging without overloading the meter box. Thanks to dynamic energy management, charging remains possible without having to upgrade your electrical infrastructure.

The meter is robust and suitable for installation in the meter box. The included CT clamps (200 A) are placed around the phases of the meter box to measure net power consumption. Installation requires mounting on the main distribution board, connection to a dedicated 2-pole circuit breaker (maximum 20 A for the voltage supply line to the meter), and correct positioning of the CTs. The meter is designed for long-term use, with a wide temperature range, and is compatible with single- and three-phase installations.

TES-NEURIO-METER-3P Features

• Model: Neurio W2 meter kit (3-phase)
• Includes 3 x 200 A CT clamps (for 3 phases)
• Supports dynamic energy management (load balancing) with Wall Connector
• Connection: Mains voltage via voltage line harness + CTs in the meter box
• Communication to the charging station: RS-485 data cable (CAT-5/UTP is common)
