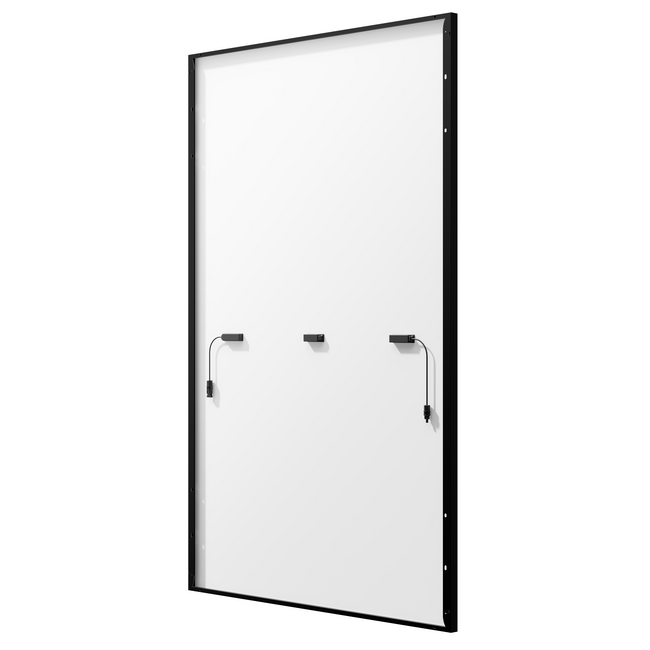

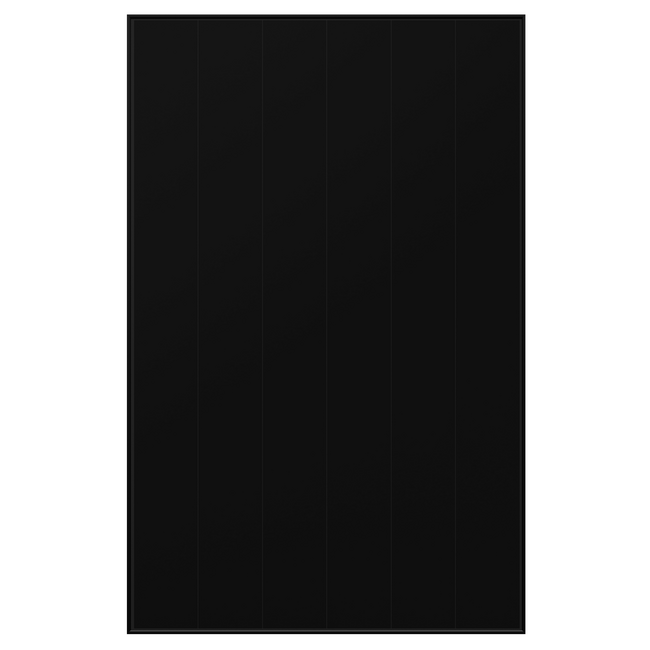

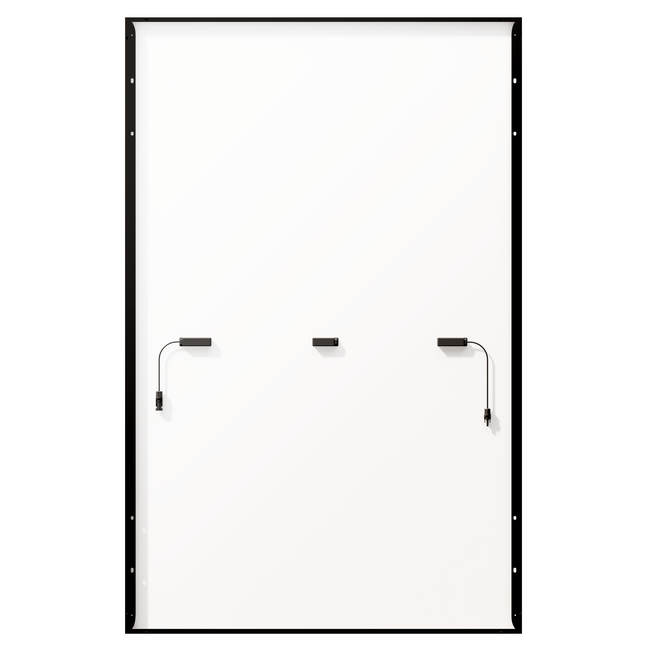

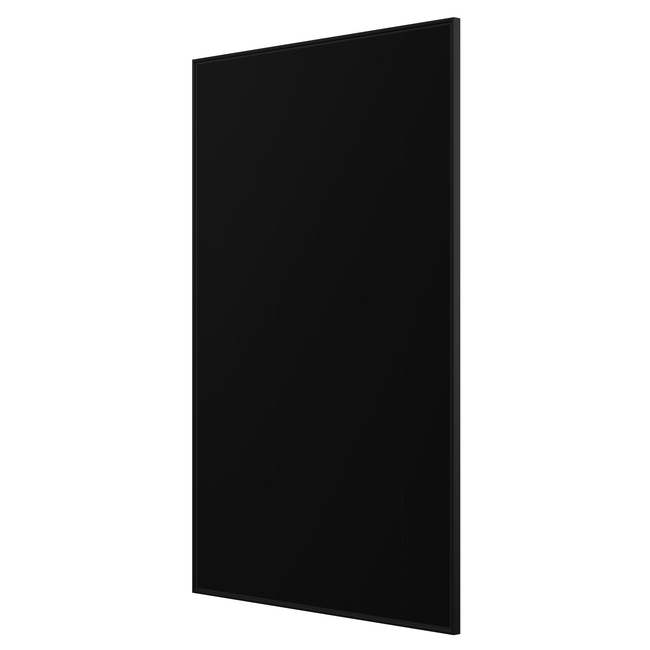

Aiko 485Wp | All Black
- Aiko
- N-Type ABC | 108 HC | MC4 | Black frame | 1762x1134x30
Article number:AK-A485-MCE54Mb-BK
Supplier item code:AIKO-A485-MCE54Mb
Product information
Aiko 485 Wp All Black
The AK-A485-MCE54Mb-BK from Aiko Solar is a Gen3 All Black N-Type ABC solar panel with a power output of 485 Watt-peak. This module features 3.2mm semi-tempered glass with an anti-reflective coating and is part of the NEOSTAR Series. The Aiko 485Wp with 108 HC cells has a black anodized aluminum frame and dimensions of 1762x1134x30mm. Furthermore, the AK-A485-MCE54Mb-BK boasts an efficiency of 24.3% and the panel is equipped with original MC4 connectors. Thanks to N-Type ABC technology, the entire front surface is capable of effectively absorbing sunlight. With Aiko Solar solar panels, you benefit from a 30-year product warranty and a 30-year performance warranty. There are 37 units on a pallet.
Features of the AK-A485-MCE54Mb-BK
- 243Wp/m²
- N-Type ABC
- 108 HC cells
- Black frame
- Gen3
- MC4
- Weight 20.6kg
- 1.2M Cable length
- Dimensions 1762x1134x30mm
- Neostar Pro Series
Benefits of N-Type solar panels
N-type solar panels have 3 key advantages:
- N-type solar panels deliver higher power per square meter.
- These panels have lower degradation compared to P-type panels.
- You benefit from longer warranties
Specifications
MPP power by STC
485
Cable length
1.2
Power tolerance
0-3
Temperature coefficient Uoc
-0.22
Reverse current load
14.02
