EcoFlow PowerOcean PLUS Kit | S2 | Wall | 5.1 kWh
- EcoFlow
- Consists of 1x EF-BD-5.1-S1 and EF-BD-JC-S2-W-S1
Product information

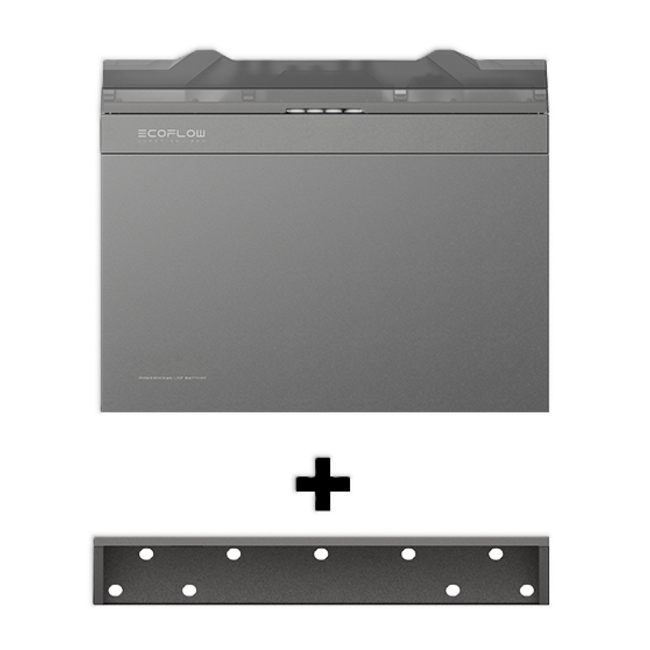

EcoFlow PowerOcean PLUS Kit 5.1 kWh with Junction Box S2 and Wall Mount
The EcoFlow PowerOcean PLUS Kit with Junction Box S2 and wall mount offers a powerful and compact solution for three-phase installations. With one to three LFP Battery units of 5.1 kWh each, you can easily configure an energy storage system up to 15.3 kWh. Each battery operates independently, thanks to a built-in DC-DC converter and BMS.
The Junction Box S2 ensures a safe and central connection to the rest of the PowerOcean system. The included wall mount allows direct installation against the wall, resulting in a clean and space-saving setup. A 1.5-meter (10 mm²) DC cable set is included for a solid connection.
To complete your storage package, an energy meter is required. Choose from:
- 3-Phase INLINE energy meter (max. 3x 80A): EF-EFA-ADL400-CT
- 3-Phase energy meter with 3x 80A CTs: EF-EFA-ADL400N-CT
- 3-Phase energy meter with 3x 120A CTs: EF-EFA-ADL400N-CTD16
- 3-Phase energy meter with 3x 200A CTs: EF-EFA-ADL400NCT200A
This configuration includes:
- 1x LFP Battery unit
- 1x Junction Box S2
- 1x Wall mount
- 1x DC cables (1.5m / 10 mm²)
**Note:** A compatible inverter and energy meter are required for proper operation of the EcoFlow system. See the full overview in the Storage Folder.
