Conduct | PVbox | 3 MPPT 12 IN 12 OUT
- Conduct
- SB.3.12IN.MT | Accessory | SB.3.NF.T1.NSX.12IN.MT | DC SPD1
Article number:CON-SB-3T-12-MT
Supplier item code:SB.3.12IN.MT
Product information

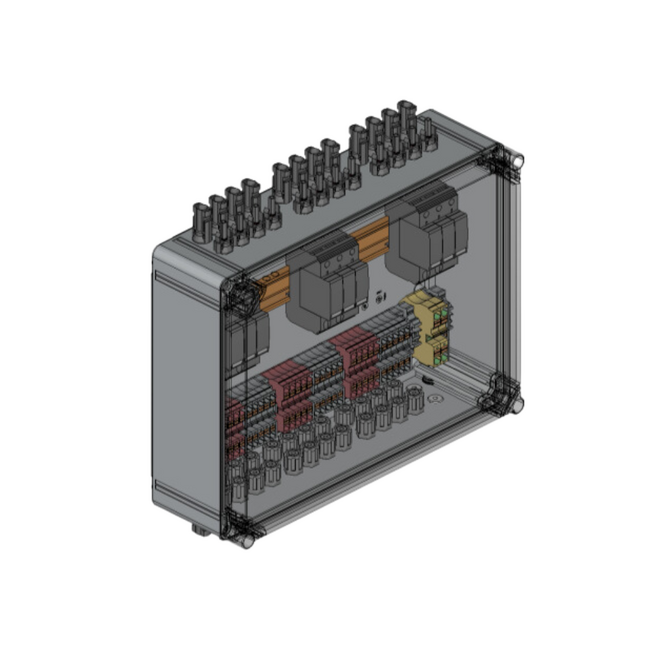

Conduct PVbox
This Conduct PVbox is suitable for systems with 3 MPPT trackers and 12 strings. The PVbox has 12 inputs and 12 outputs and surge protection type 1+2.
The PVbox guarantees a level of surge protection to meet both current and future requirements. Just as AC systems, DC power circuits for solar systems must have surge protectors to comply with NEN1010:2020. The Conduct PVbox is a compact, fireproof device measuring 250 x 500 x 250mm.
How to choose the right PVbox
A PVbox code has the following properties: CON-SB-(number of trackers)T-(number of strings). If you need a different PVbox, search for ‘CON-SB’ in the webshop for an overview of all the PVboxes in our standard product range. Other configurations can be provided on request by contacting our customer support.
Specifications
Supplier warranty
1 year
Accessory
Yes
