GoodWe | 100K-GT

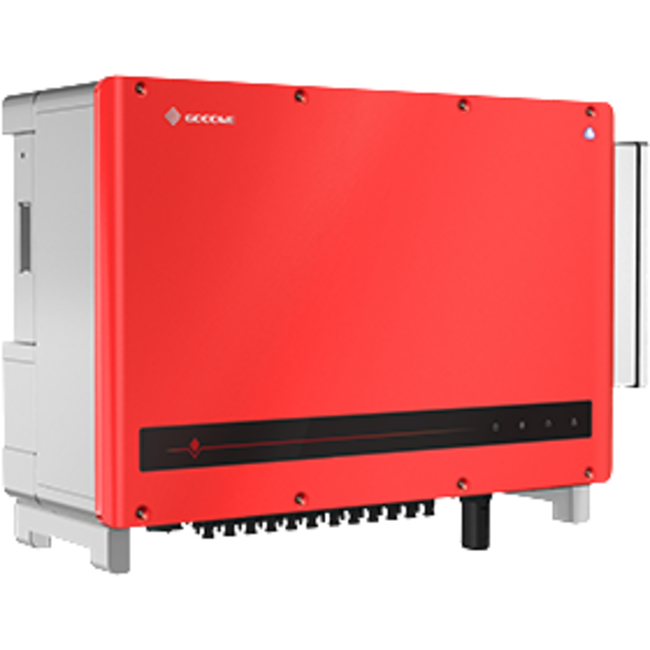

GoodWe 100K-GT-AFCI

The GoodWe 100K-GT-AFCI has a max. efficiency of no less than 98.8% and a start-up voltage of 200V. The product has a 3-phase connection, which means that the incoming power is distributed over three cables. Due to the 8 MPPT trackers, there is an accurate MPPT algorithm. The GW100K-GT-AFCI allows current input up to 42 A and is compatible with high-power PV modules. The GW100K-GT-AFCI is part of the GT Series and has a 5-year factory warranty
Do you want to know which communication module fits which inverter? Then view the page about the communication accessories in our Roadmap.

Features of the GW100K-GT-AFCI

• Max. DC power 110,000Wp
• Max. Output current 167.1A
• Nominal input voltage 600V
• Max. efficiency 98.8%
• 3-Phase
• 8 MPPT 16 IN
• RS485 (Optional: WIFI/LAN)
• IP66
• 85kg
• Dimensions 930 x 650 x 300mm
