GoodWe | 125K-GT

GoodWe 125K-GT-AFCI

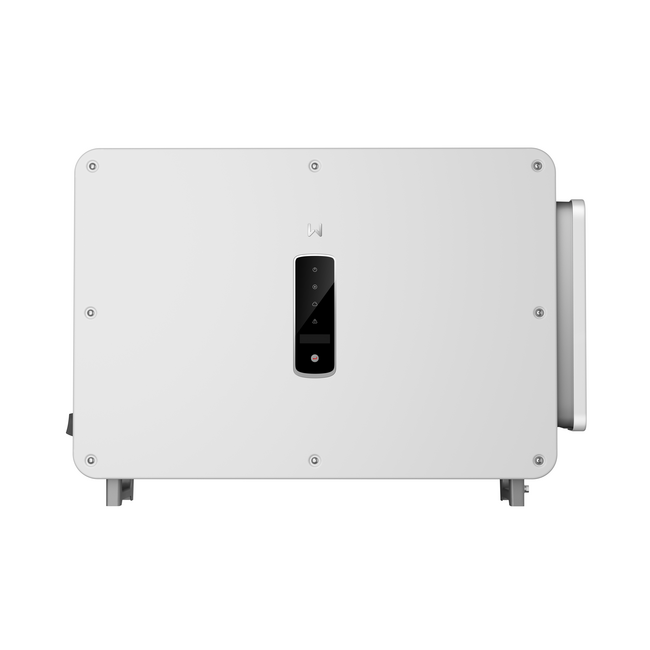

The GoodWe GTU125K-20-01P is an advanced three-phase string inverter with a nominal AC output of 125 kilowatts, designed for large-scale commercial and industrial PV installations. This inverter is part of GoodWe’s GT series and is optimized for high energy yield in setups with a large number of solar panels. With a maximum efficiency of 98.8%, multiple MPPT inputs, and a robust IP66-rated housing, the GTU125K-20-01P delivers outstanding performance even under challenging environmental conditions.

Want to know which communication module fits which inverter? Check the communication accessories page in our Roadmap.

Key features of the GW125K-GT-AFCI

• Max. DC imput power: 137,500 Wp
• Max. output current: 199.4 A
• Nominal input voltage: 600 V
• Max. efficiency: 99%
• 3-phase
• 10 MPPTs, 20 inputs
• RS485
• WIFI / LAN / BT
• IP66
• 88 kg
• Dimensions: 930 x 650 x 300 mm
