GoodWe | 150K-GT-G10

GoodWe
NBH150K-03-00P | 3-Phase | 150 kWh | 250.7A | 10 MPPT 20 IN | WIFI/LAN | AFCI | DC | SPD 1 and 2 | PID | NP | C5

Article number:GW150K-GT-G10

Product information
Specifications
Documentation

Product information

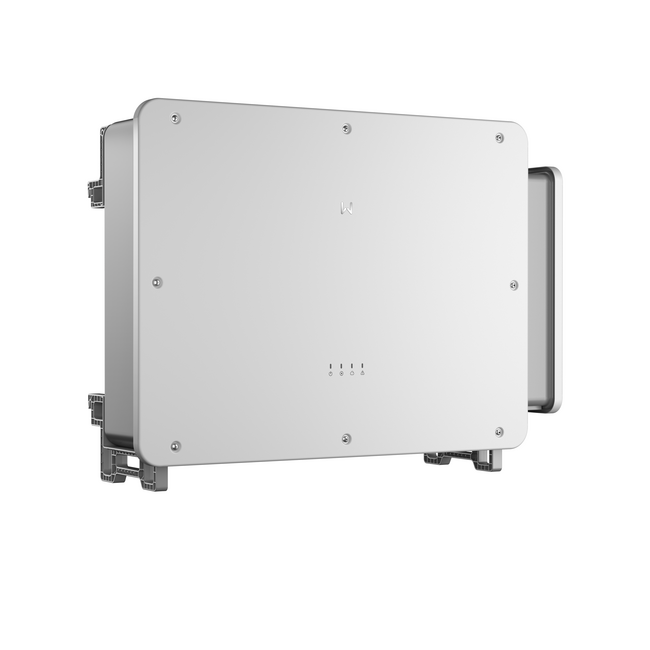

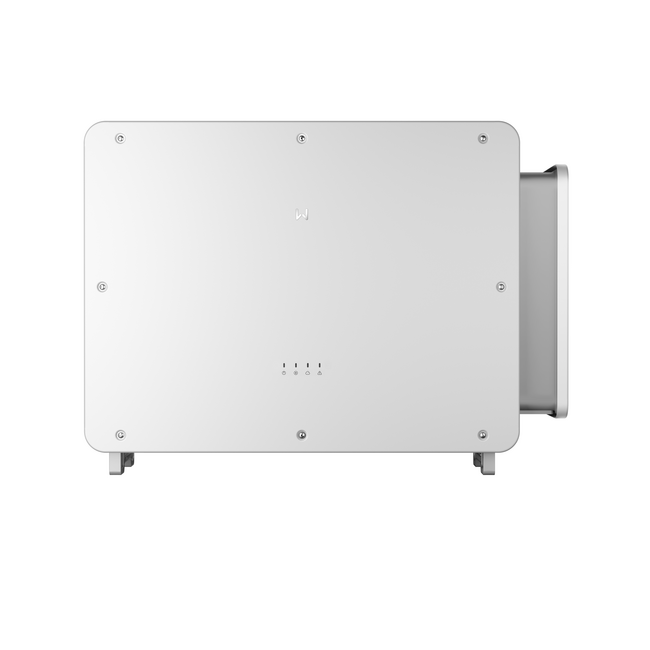

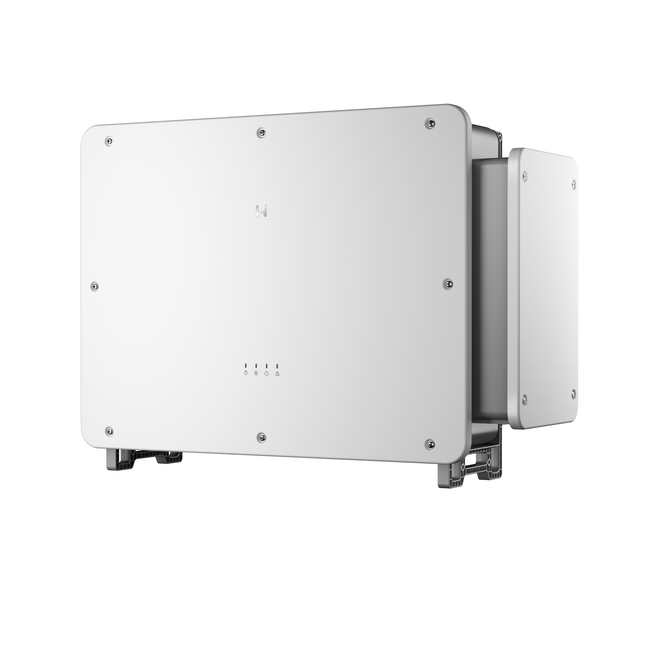

GoodWe 150K-GT-G10 Inverter

With a nominal AC power of 150 kW and a maximum output of up to 165 kW, this inverter delivers strong performance, even under peak load. The wide MPPT range from 180 to 1000V ensures flexibility in string design and allows you to achieve optimal yield from various rooftop or ground-mounted installations.

Thanks to 10 independent MPPTs, the installation is more resilient to shading and varying orientations, which directly results in higher energy yield.

Key features:

3-Phase
250.7A
10 MPPT 20 IN
Max. efficiency 99.0%
IP66
WIFI&LAN
Weight 99kg
Dimensions 995 × 758 × 358mm

Specifications

Max. efficiency

Width

995

Max. AC Apparent Power (VA)

150000 VA

Weight

European efficiency

98.5

Documentation

AA) Datasheet GoodWe GW150K-GT-G10 251028 V1.1 EN AD1) EN 50549-1 Certificate GoodWe GW150K-GT-G10 AD2) EN 50549-2 Certificate GoodWe GW150K-GT-G10 AD3) CE-certificate GoodWe GW150K-GT-G10 AD4) Certificate AFCI IEC 63027 GoodWe GW150K-GT-G10 ADZ) IEC 62109 Certificate GoodWe GW150K-GT-G10 ADZ) IEC61683 IEC62891 IEC60068 EN50530 Certificate GoodWe GW150K-GT-G10 DD1) CEI 0-16 Certificate GoodWe GW150K-GT-G10 DD2) CEI 0-21 Certificate GoodWe GW150K-GT-G10
