GoodWe | 30K-SDT-P30
- GoodWe
- NA80030-02-00P | 3-Phase | 45.5A | 3 MPPT 6 IN | WIFI/LAN/BT/RS485
Article number:GW30K-SDT-30
Supplier item code:NA80030-02-00P
Product information

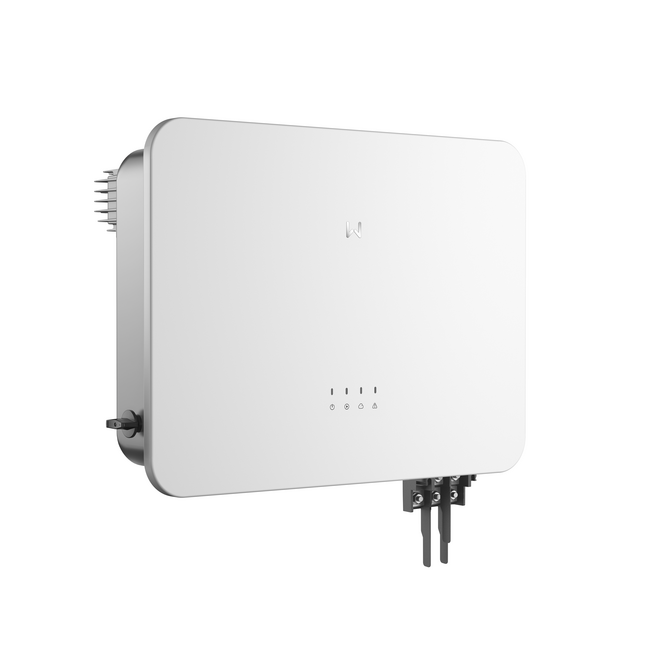

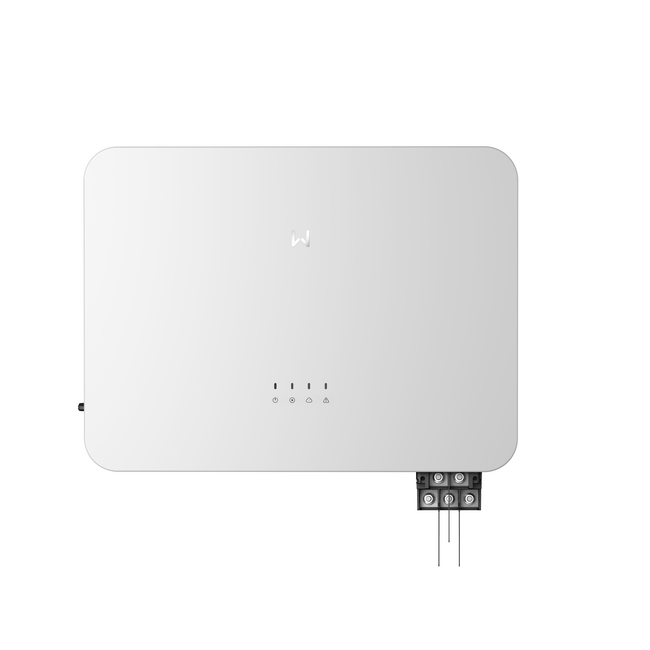

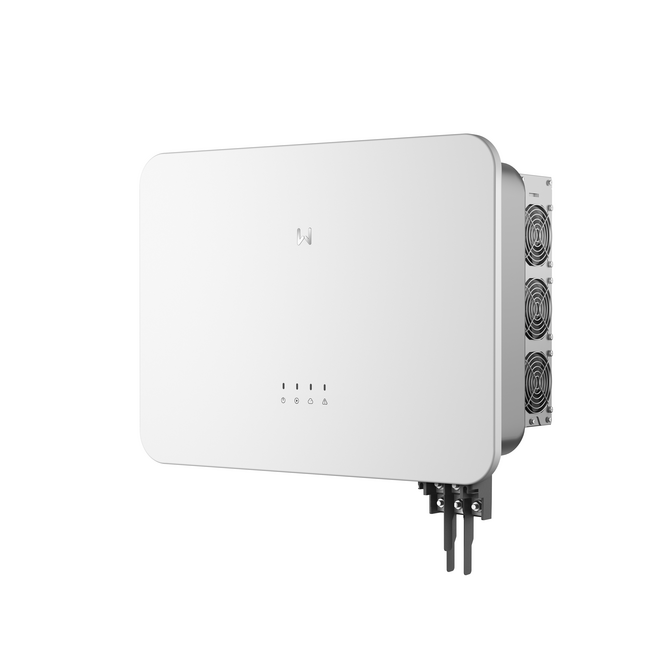

GoodWe GW30K-SDT-30
The GoodWe GW30K-SDT-30 inverter has a maximum efficiency of 98.7% and is compatible with bifacial modules. This GoodWe inverter has a wide MPPT range. Its three MPPT routes make it suitable for complicated roof structures and orientations. The GW30K-SDT-30 is part of the SDT series and carries a 5-year warranty.
Want to know which communication module is compatible with which inverter? Then visit the communication accessories page in our Roadmap.
Features of the GW30K-SDT-30
- Max. DC input power: 30,000W
- Max. output current: 40A
- Max. Efficiency 98.7%
- 3-Phase
- 3 MPPT 6 IN
- RS485 (Optional: Wi-Fi/LAN)
- Dimensions 585 x 483 x 230mm
Specifications
Max. efficiency
98.7
Rated MPP-voltage
140-950
Max. input voltage DC
1100
Width
585
Max. AC Apparent Power (VA)
30000 VA
Documentation
AA) Datasheet GoodWe GW30K-SDT-30 (SDT G3) ENAB) Manual GoodWe (25-40)K-SDT-30 (SDT G3) V1.6 20250610AB) Quick Installation Guide GW(25-40)K-SDT-30 V1.6 20250507 ENAD1) Certificate-EN50549-1_EN50549-10 GW(25-40)K-SDT-30AD4) Certificate-IEC63027 GW(25-30)K-SDT-30 (optional function)AD4) Certificate-IEC63027 GW40K-SDT-30 40K-SDT-P30 (optional function)ADZ) Certificate-IEC62116_IEC61727_COC GW(25-40)K-SDT-30ADZ) Certificate-IEC62891_IEC60068_EN50530_COC GW(25-40)K-SDT-30ADZ) Certificate-VDE0126 GW(25-40)K-SDT-30BA) Datasheet GoodWe GW30K-SDT-30 (SDT G3) NLBB) Quick Installation Guide GW(25-40)K-SDT-30 V1.6 20250507 NLCA) Datasheet GoodWe GW30K-SDT-30 (SDT G3) DECB) Quick Installation Guide GW(25-40)K-SDT-30 V1.6 20250507 DECD1) Certificate-VDE4105 GW(25-40)K-SDT-30
