GoodWe | 3600-ES-20 | Hybrid

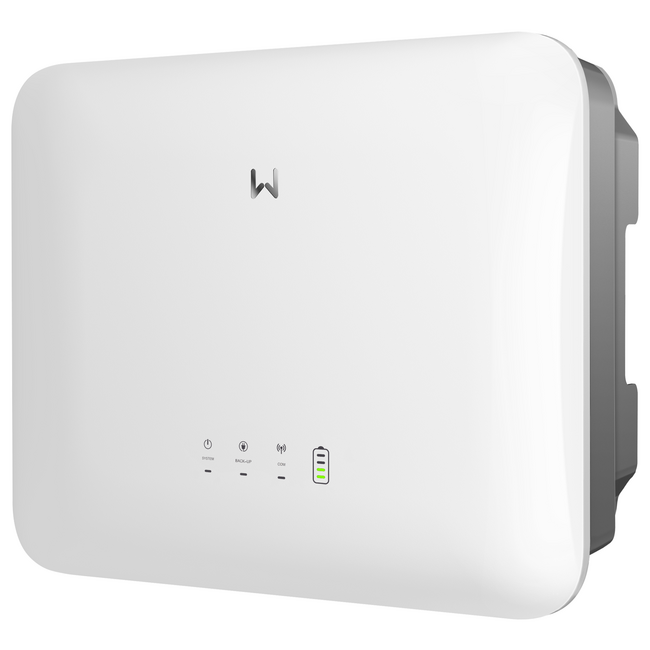

GoodWe 3600-ES-20 hybrid inverter

With the GoodWe 3600-ES-20 hybrid inverter, you are ready for the future! The energy generated by a PV system can be used to optimize self-consumption and overload. The energy that can no longer be stored is returned to the grid. The GoodWe 3600-ES-20 has integrated AC overvoltage protection, AC short-circuit protection, AC overcurrent protection, anti-islanding protection, reverse polarity protection, residual current monitoring unit and insulation resistance detection. The GoodWe ES series is compatible with the following batteries: BYD LVS 4kWh-24 kWh & GW Lynx Home U. Both the energy meter and data cable for the battery and energy meter are included.

Do you want to know which communication module fits which inverter? Then go to the information page about the communication modules in our FAQ.

Features of the GW3600-ES-20:

• 1-Phase
• 3.6kW
• WIFI/WIFI+ LAN/4G
• incl. GM110 and 1 CT
• 20.8kg
• Dimensions 505.9 x 434.9 x 154.8mm
