GoodWe | 5000S-BP-20-2 | AC coupled

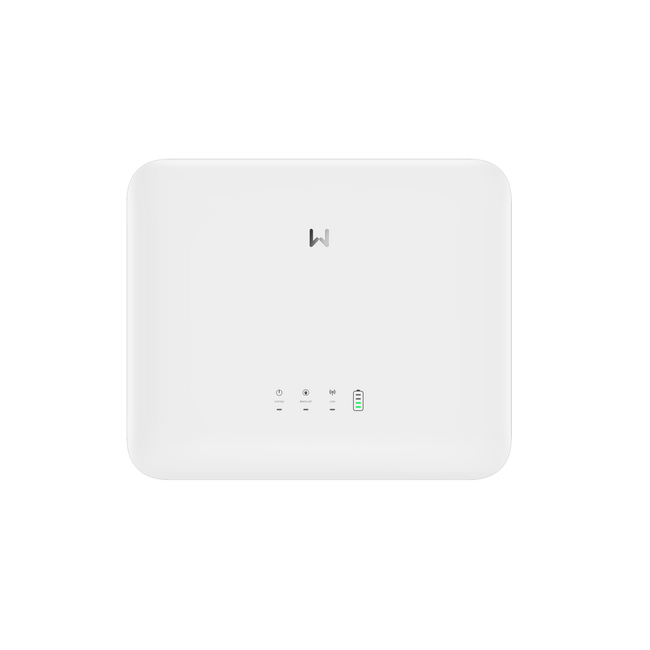

GoodWe 5000S-BP-20-2

The 5000S-BP-20-2 AC coupled retrofit inverter from GoodWe works as battery storage and AC coupling on 1-phase systems. To ensure uninterrupted power supply in the event of power failures, the battery can also be charged via the mains. The inverter works on a Li-Ion battery with a nominal battery voltage of 48 volts. The max. charge and discharge current is 100A and a max. output current is 22.7A. The GW5000S-BP-20-2 is part of the SBP series and has a 10-year warranty. It is important to know that this inverter is AC coupled and can be used on all systems regardless of brand. Solar panels cannot be connected directly here. The GoodWe SBP series is compatible with the following batteries: BYD LVS 4kWh-24 kWh & GW Lynx Home U. Both the energy meter and data cable for the battery and energy meter are included.

Do you want to know which communication module fits which inverter? Then view the page about the communication accessories in our Roadmap.

Features of the GW5000S-BP-20-2

• 1-Phase
• 5kW
• 48V
• Retrofit
• Wi-Fi
• Dimensions 347 x 432 x 190 mm
• Incl.GM1000D energy meter with 2 measuring coils

Benefit from Goodwe PLUS+ benefits

Become eligible for the GoodWe PLUS+ program and enjoy additional benefits and rewards! To become a GoodWe PLUS+ installer, you will follow a specific training from GoodWe and obtain a SEMS portal account. After successful completion of the training, you will receive certification, a 10-year warranty and access to exclusive support and marketing materials. Register for the training today!
