GoodWe | 50K-ET-10
- GoodWe
- ETF0050-02-01P | 3-phase | 50kW | 4 MPPT 8 IN | 75.8A | WiFi/LAN/BT
Article number:GW50K-ET-10
Supplier item code:ETF0050-02-01P
Product information

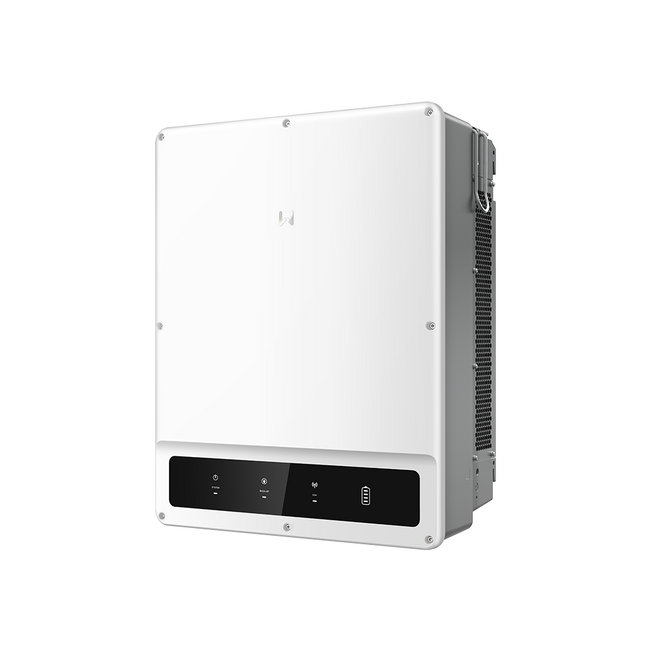

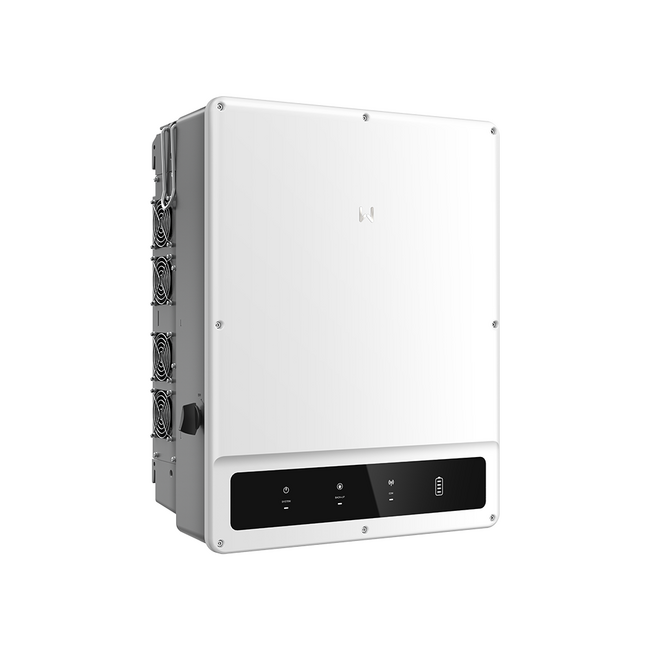

GoodWe inverter | 50K-ET-10
The GoodWe 50K-ET-10 is a powerful 3-phase hybrid inverter with a rated output power of 50 kW and a maximum apparent power of 55 kVA. With four MPP trackers and eight DC inputs, this inverter is particularly suitable for large-scale commercial installations where flexibility and high efficiency are essential. Thanks to integrated communication via WiFi, LAN and Bluetooth, the 50K-ET-10 offers optimal monitoring and management.
Key features of GW50K-ET-10
- Rated AC output power: 50000 W
- Maximum AC apparent power: 55000 VA
- Maximum DC input power: 55000 W
- Maximum efficiency: 98.1%
- Euro efficiency: 97.5%
- Number of MPP trackers: 4 (8 DC inputs)
- Protection rating: IP66
- Communication: WiFi, LAN, Bluetooth
- AFCI protection: Yes
- Weight: 62 kg
- Dimensions: 660 × 520 × 260 mm
Specifications
Max. efficiency
98.1
Max. input voltage DC
1000
Width
520
Max. AC Apparent Power (VA)
55000 VA
Weight
62
Documentation
AA) Datasheet GoodWe 50K-ET-10 ENAB) Manual GoodWe (40-50)K-ET-10 ENAB) Quick Installation Guide GoodWe (40-50)K-ET-10 ENAD1) Certificate-EN50549-1 EN50549-10 GoodWe (40-50)K-ET-10AD2) Certificate-EN50549-2 EN50549-10 GoodWe (40-50)K-ET-10AD3) CE-Certificate EU Declaration of Conformity_POLYAD4) Certificate AFCI IEC63027 2023ADZ) Certificate-CEI 0-16_Lynx C GoodWe (40-50)K-ET-10ADZ) Certificate-CEI 0-21_Lynx C GoodWe (40-50)K-ET-10ADZ) Certificate-IEC61683_IEC62891_EN50530_IEC60068-2 GoodWe (40-50)K-ET-10ADZ) Certificate-IEC61727_IEC62116 GoodWe (40-50)K-ET-10ADZ) Certificate-IEC62109_CELVD GoodWe (40-50)K-ET-10ADZ) Certificate-NC-RfG GoodWe (40-50)K-ET-10ADZ) Certificate-NTS GoodWe (40-50)K-ET-10ADZ) Certificate-TOR GoodWe (40-50)K-ET-10ADZ) Certificate-UNE 217002 GoodWe (40-50)K-ET-10ADZ) Certificate-UNE217001-SEC3000C GoodWe (40-50)K-ET-10BA) Datasheet GoodWe 50K-ET-10 NLBF) Certificaat Homologatie Synergrid GoodWe (40-50)K-ET-10CA) Datenblatt GoodWe 50K-ET-10 DECB) Handbuchen GoodWe (40-50)K-ET-10 DECB) Quick Installation Guide GoodWe (40-50)K-ET-10 DECD1) Certificate-VDE4105 GoodWe (40-50)K-ET-10CD2) Certificate-VDE 4110_VDE 4120 GoodWe (40-50)K-ET-10
