We are pleased with the increasing demand for sustainable products. We are currently scaling up to ensure next working day delivery, as you have come to expect from us. Please check the earliest available delivery date under your preferred delivery option. Collection is currently not possible. Thank you for your understanding.

GoodWe | 5000-DNS

  • GoodWe
  • NBA5000-05-00P | 1-phase | 19.1A | 2 MPPT 2 IN | WiFi/LAN/BT
Article number:GW5K-DNS-G40
GoodWe | 5000-DNS
GoodWe | 5000-DNS
GoodWe | 5000-DNS

Product information

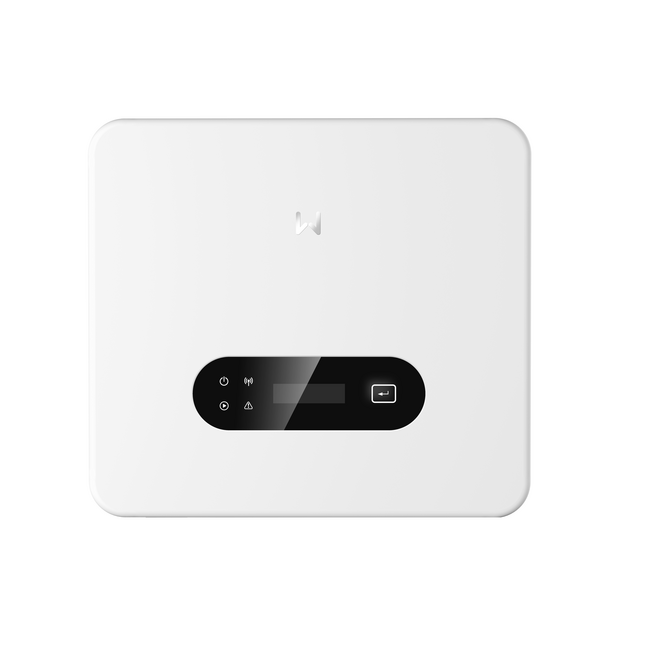

GoodWe 5000-DNS

The GW5K-DNS-G40 single-phase inverter from GoodWe is designed for durability and long service life. It delivers very high efficiency and is 30% lighter than comparable models, making installation much easier. In addition, it comes with an IP66 protection rating, meaning your GoodWe inverter can be installed both indoors and outdoors. The GoodWe 5K-DNS-G40 is part of the DNS series and comes with a 10-year factory warranty.

Want to know which communication module fits which inverter? Visit the information page on communication modules in our FAQ.

Features of the GW5K-DNS-G40

  • 30% lighter than comparable models
  • Max. DC input power 5000W
  • Max. output current 22.8A
  • Max. efficiency 98.1%
  • 1-phase
  • 2 MPPT 2 IN
  • RS485 / WiFi / LAN / BT
  • 9.2kg
  • Dimensions 323 × 358 × 165 mm

Enjoy GoodWe PLUS+ benefits

Join the GoodWe PLUS+ program and benefit from extra advantages and rewards! To become a GoodWe PLUS+ installer, follow the dedicated GoodWe training and obtain a SEMS portal account. After successful completion you will receive certification, 10 years warranty and access to exclusive support and marketing materials. Sign up for the training today!

Specifications

Max. efficiency
98.1
Max. input voltage DC
600
Width
358
Max. AC Apparent Power (VA)
5000 VA
Max. short circuit current per MPPT
26

Documentation

AA) Datasheet GW5K-DNS-G40 EN ENAB) Manual GoodWe (3-5)K-DNS-G40 (DNS G4) EN ENADZ) DNS G4 IEC62109 CE LVD Certificate ENADZ) IEC62109 Certificate DNS G4 ENADZ) IEC62109 Report DNS G4 ENADZ) IEC63027 Certificate DNS G4 ENADZ) IEC63027 Report (include 60730-1) DNS G4 ENBA) Datasheet GW5K-DNS-G40 (DNS G4) NL ENBF) Certificaat Homologatie Synergrid GoodWe GW(3-5)K-DNS-G40 ENCA) Datenblatt GW5K-DNS-G4 DE ENGW5K-DNS-G40 IEC63027 Report (include 60730-1) CN2539ZK 003 (Po) EN
