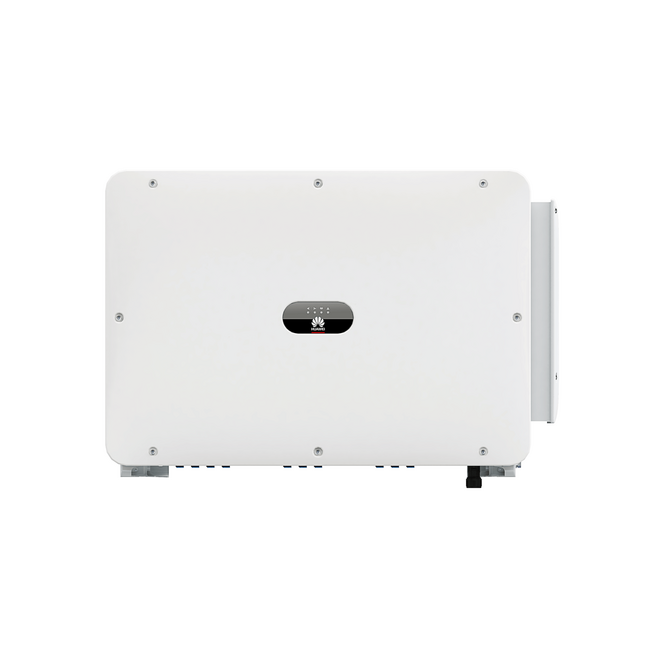

Huawei | SUN2000-100KTL-M2 DC SPD 1&2 | Inverter

  • Huawei
  • 01074695-051 | 3-phase | 160,4A | 10 MPPT 20 IN | RS485 | AFCI
Article number:HUA-100KTL-M2-SPD1
Huawei | SUN2000-100KTL-M2 DC SPD 1&2 | Inverter

Product information

Huawei | SUN2000-100KTL-M2 DC SPD 1&2 | Inverter

The HUA-100KTL-M2-SPD1 is a compact and efficient inverter with high energy density and very well suited for large commercial / small utility solar energy.

The HUA-100KTL-M2-SPD1 has a 3-phase connection, has a capacity of 110% up to 45°C ambient temperature, and input currents of 20A per string, which increases the yield. Furthermore, this inverter is equipped with integrated arc detection. This product does not have an LCD display.

Only for the Netherlands, Germany, Switzerland, Austria and the Czech Republic.

Features of the HUA-100KTL-M2-SPD1

  • Max. output current 160.4A
  • Max. efficiency 98.8%
  • 3-Phase
  • 10 MPPT 20 IN
  • RS485 / USB / 4G/WLAN
  • Dimensions 1035 x 700 x 365mm
  • 93 KG
  • IP66

Specifications

Supplier warranty
5 years
Max. efficiency
98.8
Max. input voltage DC
1100
Width
1035
Max. AC Apparent Power (VA)
110000 VA

Documentation

AA) Datasheet HUA-100KTL-M2-SPD1 EN ENAB) User manual SUN2000 (100-115)KTL-M2 ENADZ) RED DA EN18031-1 Certificate Huawei SUN2000-100M1_100M2_115M2 ENBF) Certificaat Homologatie Synergrid Huawei SUN2000-100 115KTL-M2 ENCA) Datenblatt Huawei SUN2000-100KTL-M2 DE EN
