Huawei | SUN2000-215KTL-H3 | Inverter

  • Huawei
  • 01075607-003 | Three phase | 155.2A | 800V | 3 MPPT 14 IN | RS485 | Mbus
Article number:HUA-215KTL-H3
Huawei | SUN2000-215KTL-H3 | Inverter

Product information

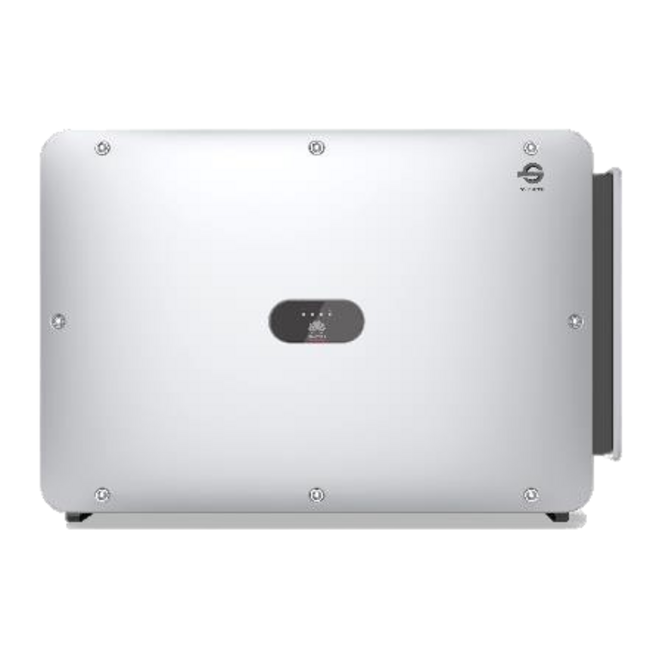

Huawei SUN2000-215KTL-H3

Huawei’s SUN2000-215KTL-H3 is a three phase Smart String inverter which converts the direct current generated by PV strings into alternating current and delivers the power to the grid. This powerful string inverter has a power output of 215kW and includes three MPPTs of 100A each, with two string connections. The SUN2000-215KTL-H3 is compatible with Stäubli MC4 EVO2 connectors, supports smart I-V curve diagnosis, and has integrated T2 surge protection for both DC and AC.

This fuseless Smart String inverter features Smart Air Cooling and the Smart Logger, which connects effortlessly with intelligent components such as MBUS and RS485 communication modules. System monitoring is carried out by the FusionSolar management system.

SUN2000-215KTL-H3 product data

  • Three phase
  • 155.2A
  • 800V
  • 3 MPPT 14 IN
  • RS485
  • Mbus
  • Max. efficiency 99.0%
  • Max. input voltage 1500V
  • Start-up voltage 550V
  • IP66
  • Weight 86kg
  • Dimensions 1035 x 700 x 365mm

Specifications

Supplier warranty
5 years
Max. efficiency
99
Max. input voltage DC
1500
Width
1035
Max. AC Apparent Power (VA)
215000 VA

Documentation

A) Datasheet SUN2000-215KTL-H3 ENC) Installatiehandleiding Quick Guide SUN2000-(196KTL-H3, 200KTL-H3, 215KTL-H3) Series ENC) Installatiehandleiding User Manual SUN2000-(196KTL-H3, 200KTL-H3, 215KTL-H3) Series EN
