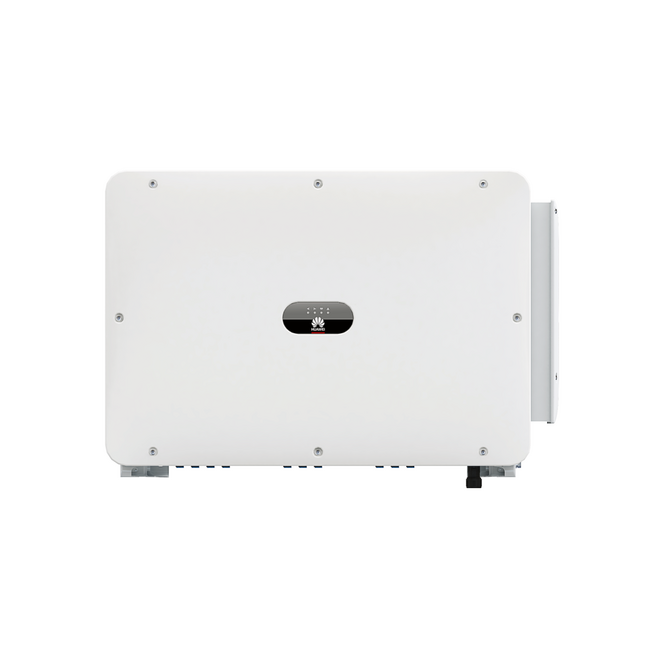

Huawei SUN2000-330KTL-H1

Huawei’s award-winning SUN2000-330KTL-H1 is a Smart PV Controller and the ideal solution for three-phase utility infrastructure. This powerful, ‘grid-friendly’ inverter is characterised by its high energy yields and convenient smart maintenance and safety features. Moreover, this inverter supports smart I-V curve diagnosis, has integrated residual current intensity monitoring, and T2 surge protection for both DC and AC. The SUN2000-330KTL-H1 has an amazing power output 330kW and features six MPPTs with two inputs each for monitoring 28 65A strings.

This smart PV controller combines AI-based technology with modern electronics, including a smart self-cleaning ventilator, Smart Air Cooling and the Smart Logger, which connects effortlessly with intelligent components such as MBUS and RS485 communication modules. System monitoring is carried out by the FusionSolar management system.

SUN2000-330KTL-H1 product data

• 330kW
• Three phase
• 238.2A
• 800V
• 6 MPPT 28 IN
• RS485
• Mbus
• Max. efficiency 99.0%
• Max. input voltage 1500V
• Start-up voltage 550V
• IP66
• Weight 112kg
• Dimensions 1048 x 732 x 395mm
