Solis | 5K-S6
- Solis
- 021801110069 | Single phase | AFCI | 5kW | 2 MPPT 2 IN
Article number:Solis-5K-S6
Product information

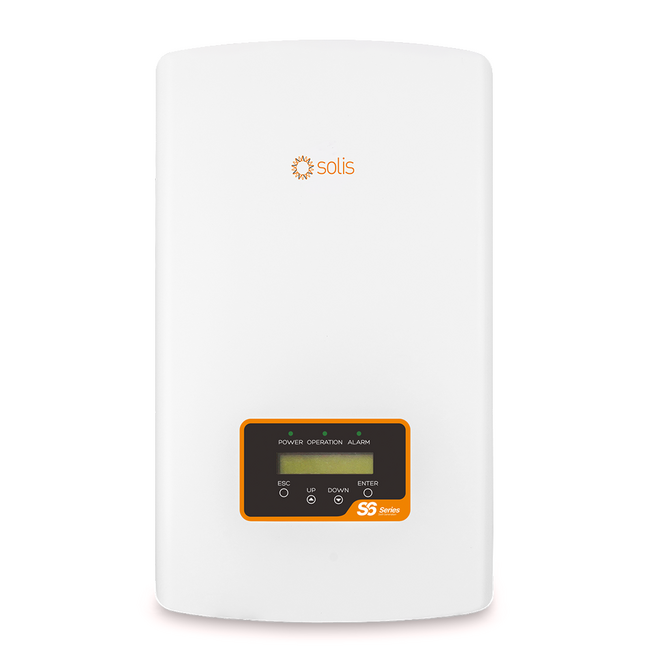

Solis 5K-S6
Designed for residential solar systems, the Solis-5K-S6 features two MPP trackers for an accurate MPPT algorithm. This inverter features high-frequency switching technology, a wide voltage range and a low start-up voltage, integrated arc detection and an export power manager (EPM). The Solis-5K-S6 is part of the S6 series and comes with a 10-year manufacturer’s warranty.
Solis-5K-S6 product data
- Max. DC output 7.5kW
- Max. input current 14A
- Max. output current 25A
- Max. efficiency 97.7%
- Single phase
- 2 MPPT 2 IN
- Integrated AFCI
- RS485 (Optional: WiFi/LAN/GPRS in combination with data logger).
- LCD display
- Weight 12kg
- Dimensions 310 x 543 x 160mm
- 10-year warranty (valid for the Netherlands, Belgium, France, Germany, Poland and Italy)
Specifications
Supplier warranty
10 years
Max. efficiency
97.7
Rated MPP-voltage
90-520
Width
310
Max. AC Apparent Power (VA)
5000 VA
Documentation
AA) Datasheet Solis-5K-S6 EN ENAB) Manual Solis-xK-S6 S6-GR1P(2.5-6)K V1.3 20240227 EN ENAC) Solis Warranty Europe 20250701-2 EN ENAD1) EN-50549 certificaat Solis-xK-S6 S6-GR1P(2.5-6)K ENAD3) CE-certificate Solis-xK-S6 S6-GR1P(2.5-6)K ENAE1) 6mA verklaring Solis ENBA) Datasheet Solis-5K-S6 NL ENBC) Installatiehandleiding Solis-xK-S6 S6-GR1P(2.5-6)K ENBF) Certificaat Homologatie Synergrid Solis-xK-S6 S6-GR1P(2.5-6)K ENCA) Datenblatt Solis-5K-S6 DE ENCB) Handbuchen Solis-xK-S6 S6-GR1P(2.5-6)K V1.1 DE ENCD1) EN-50549 certificaat DAKKS Solis-xK-S6 S6-GR1P(2.5-6)K ENCD1) VDE4105 VDE0124 Zertifikat Solis-xK-S6 S6-GR1P(2.5-6)K EN
