Solis | S6-EH3P12K-H

  • Solis
  • 024602150025 | 3-Phase | HV | 12kW | 4 MPPT 4 IN
Article number:Solis-S6-EH3P12K-H
Solis | S6-EH3P12K-H
Solis | S6-EH3P12K-H
Solis | S6-EH3P12K-H

Product information

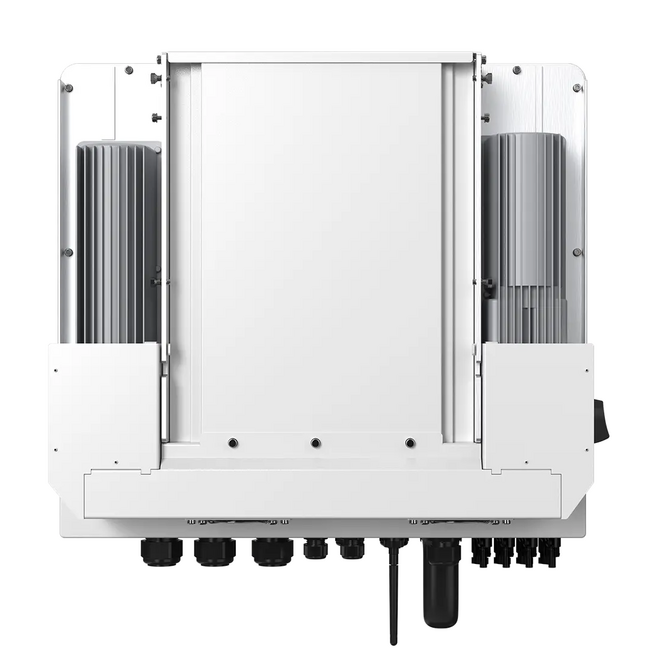

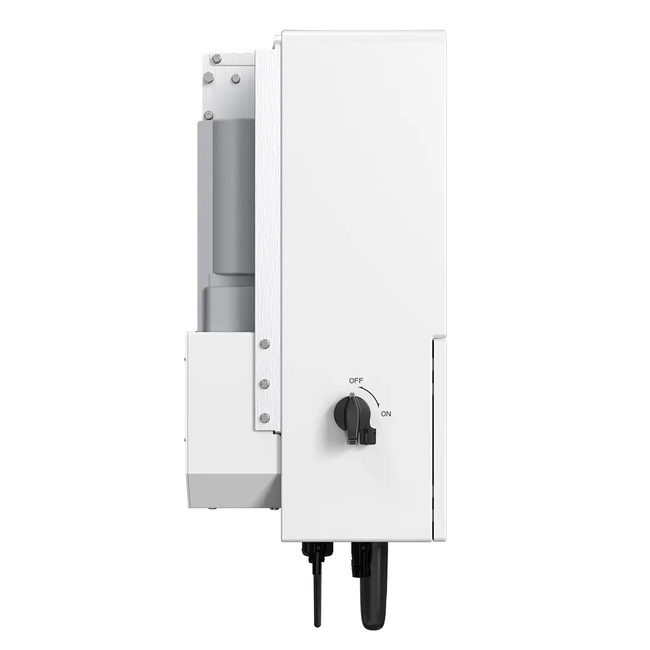

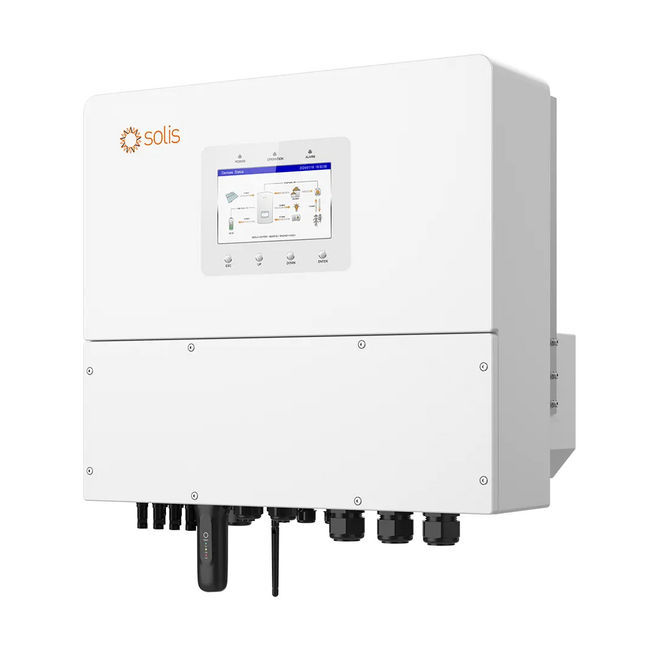

Solis S6-EH3P12K

The S6-EH3P12K 3-phase inverter from Solis is the perfect solution for residential, small, C&I PV installations. This inverter has a maximum input power of 19.2kW, a nominal output power of 12KW and a maximum efficiency of 98.5%. It has 4 MPP trackers, which means that this design has an accurate MPPT algorithm. The Solis S6-EH3P12K contains a high-frequency switching technology, a wide voltage range and a low start-up voltage. This inverter has a 3-phase connection, which means that the power is distributed over three cables. The integrated arc detection proactively reduces the risk of fire and in case of weak grid conditions there is an automatic voltage stabilization technology. The Solis S6-EH3P12K is part of the S6 series and has a 5-year factory warranty.

Solis-S6-EH3P12K Features

  • Max. Input Power 19.2kW
  • Max. Input Current 20A
  • Max. Output Current 18.2A
  • Max. Efficiency 98.6%
  • Incl. Energy meter and 3xCT
  • 3-Phase
  • 4 MPPT 4 IN
  • Integrated AFCI
  • RS485 (Optional: WIFI/LAN/4G with a Data Logging Stick).
  • Dimensions 235 x 563 x 546 mm

Specifications

Supplier warranty
5 years
Max. efficiency
97.7
Rated MPP-voltage
200-850
Max. input voltage DC
1000
Width
563

Documentation

AA) Datasheet Solis S6-EH3P12K-H V1.9 202411 ENAB) Manual S6-EH3P(12-20)K-H-EU V1.0 20241203 ENAB) Quick Installation Guide Solis S6-EH3P(12-20)K-H V1.0 ENAC) Solis Warranty Europe 20250701-2 ENAD1) EN50549-1 EN50549-10 Solis S6-EH3P(12-20)K-HAD3) CE-certificate Solis S6-EH3P(12-20)K-HAE) Certificate_EN_50549-1_EN_50549-10_S6-EH3P(12-20)K-H_EUR_V01AE2) Battery Compatibility Solis GLOBAL V2.11 202509AI) Certificate_EN_62109-1(-2)_S6-EH3P(12-20)K-H_Safety_V01AI) Certificate_EN_IEC_61000-6-1(-2)(-3)(-4)_EN_55011_EN_62920_EN_301489_EN_300328_EN_50663_EN_62109AI) Certificate_EN_IEC_61000-6-1(-2)(-3)(-4)_IEC_61000-3-2(-3)(-11)(-12)_IEC_62920_S6-EH3P(12-20)K-HAI) Certificate_IEC_EN_62109-1(-2)_S6-EH3P(12-20)K-H_Safety_V01BA) Datasheet Solis S6-EH3P12K-H V1.8 202411 NLBB) Handleiding S6-EH3P(12-20)K-H-EU V1.1 NLBF) Certificaat Homologatie Synergrid Solis S6-EH3P(12-20)K-HCA) Datenblatt Solis S6-EH3P12K-H DECB) Handbuchen Solis S6-EH3P(12-20)K-H V1.0 20241012 DECD1) VDE4105 VDE0124 Solis S6-EH3P(12-20)K-H
