Solis | EH3P15K02-NV-YD-L

Product information

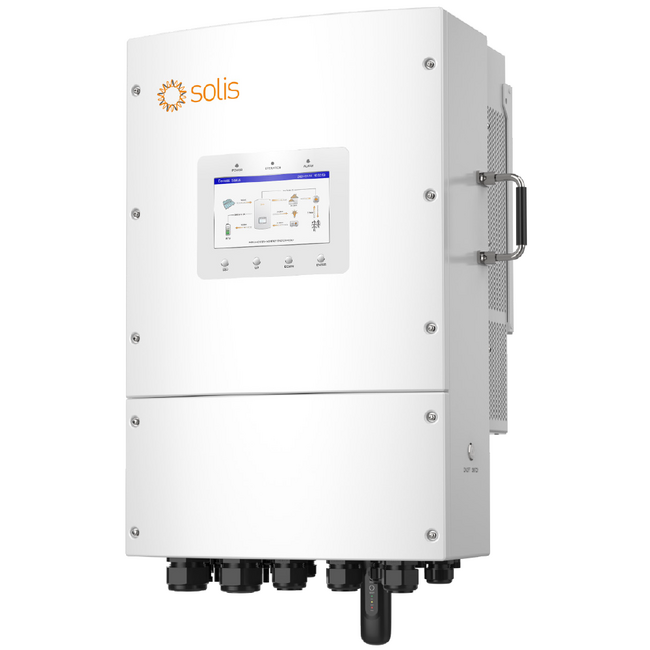

Solis EH3P15K02-NV-YD-L

The S6-EH3P15K-YDL 3-phase inverter from Solis is the perfect solution for residential, small, C&I PV installations. This inverter has a maximum input power of 24kW, a nominal output power of 15KW and a maximum efficiency of 97.6%. It has 2 MPP trackers, which means that this design has an accurate MPPT algorithm. The Solis S6-EH3P15K-YDL contains a high-frequency switching technology, a wide voltage range and a low start-up voltage. This inverter has a 3-phase connection. The integrated arc detection proactively reduces the risk of fire and in case of weak grid conditions there is an automatic voltage stabilization technology. The Solis S6-EH3P15K-YDL is part of the S6 series and has a 5-year factory warranty.

Features of the EH3P15K02-NV-YD-L

Max. input power 24kW
Max. input current 40A
Max. output current 22.8A
Max. efficiency 97.6%
3-Phase
2 MPPT 4 IN
Incl. Energy meter and 3xCT
Integrated AFCI
RS485 (Optional: WIFI/LAN/4G with a Data Logging Stick).
Dimensions 430 x 660 x 305 mm

Specifications

Supplier warranty

5 years

Max. efficiency

97.6

Rated MPP-voltage

200-850

Max. input voltage DC

1000

Width

660
