Solis | S6-EH3P30KH-LV | Hybrid

Product information

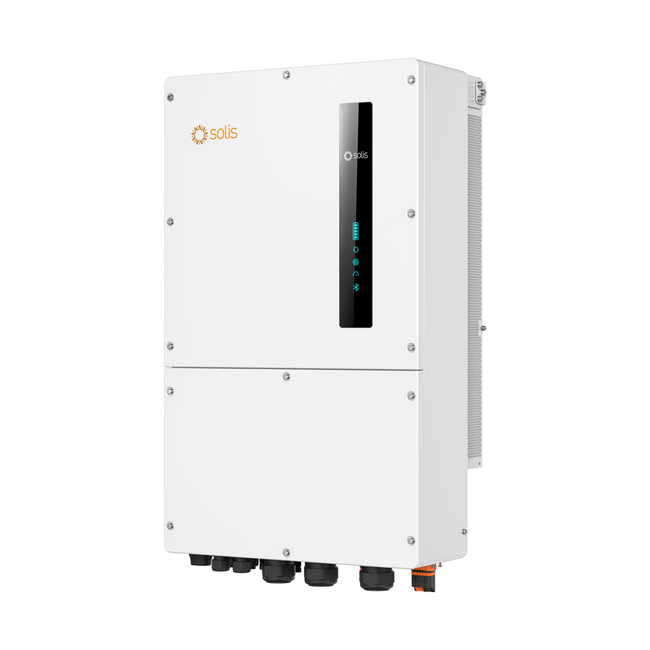

Solis S6-EH3P30K-H-LVND

Please note: this product is a Deltagrid (3x230V) inverter. Before purchasing, verify that this inverter is suitable for your installation and complies with the requirements of your grid operator.
The Solis S6-EH3P30K-H-LVND hybrid inverter is a three-phase high-voltage inverter with a maximum AC output of 30,000 W. The inverter features 3 MPP trackers and 6 DC inputs, ensuring optimal power distribution and high efficiency. With built-in WIFI and LAN communication, and support for meter and CTs, this model offers accurate monitoring and flexible integration into energy storage systems.

With an IP66 protection rating, the inverter is fully suitable for outdoor installation and resistant to dust, moisture, and temperature fluctuations. The Solis S6 series is known for its high efficiency, quiet operation, and robust housing. This version has no display and is designed for modern installations where control and monitoring are handled via network connection.

Features of the Solis-S6-EH3P30KH-LV

Max. AC apparent power: 30000 VA
IP66
3 MPPT 6 IN
WIFI/LAN
High Voltage
Including meter and CTs
No Display
Weight: 73 kg
Dimensions: 880 × 530 × 290 mm

Specifications

Max. efficiency

96.3

Rated MPP-voltage

150-850

Width

530

Max. AC Apparent Power (VA)

30000 VA

Max. short circuit current per MPPT

60

Documentation

AA) Datasheet Solis S6-EH3P30K-H-LV-ND EN AB) Manual Solis S6-EH3P(15-30)K-H-LV-ND V1.2 EN AB) Quick Guide Solis S6-EH3P(15-30)K-H-LV-ND V1.2 EN AD3) CE-certificate Solis S6-EH3P(29,9-50)K-H ADZ) EN_IEC61000-6-2(-4) Solis S6-EH3P(15-30)K-H-LV ADZ) EN62109-1(-2) Cer Solis S6-EH3P(15-30)K-H-LV-ND ADZ) EN62109-1(-2) Cert. Solis EH3P(15-30)K-H-LV-ND ADZ) IEC61000-6-2(-4) IEC6100 Solis S6-EH3P(15-30)K-AE2) Battery Compatibility Solis S6-EH3P(15-30)K-H-LV-ND BF) Certificaat Homologatie Synergrid Solis S6-EH3P30K-H-LV (Delta Grid)
