Van der Valk | ValkPro+ | Galvanised backplate L10° | 1980mm
- Van der Valk
- 742512 | Flat roof | 1720-1920mm
Product information

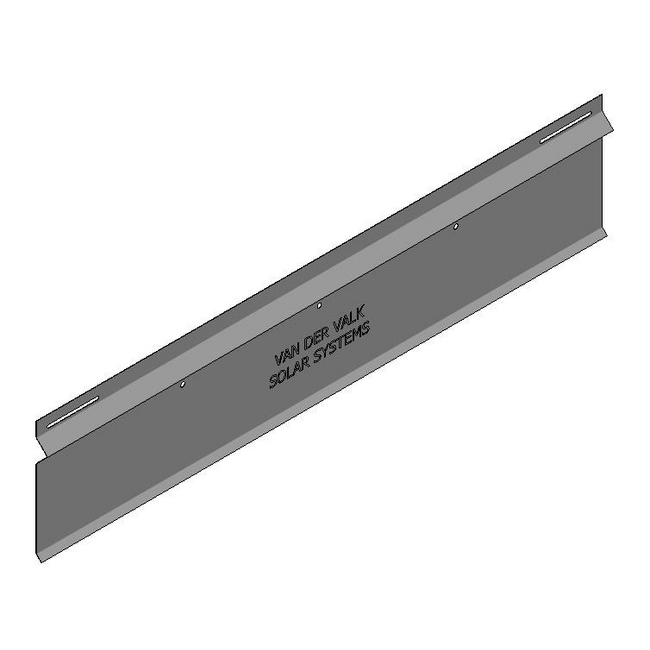

ValkPro+ Galvanised backplate L10°
The galvanised backplate is attached to the rear of the PV system to protect it from the elements. The backplates are inserted into recesses in the aluminium rear mounting elements and fastened with self-tapping bolts. Where the backplates overlap they should be fastened together using self-tapping screws. The VDV742512 has a length of 1980mm and is suitable for landscape arrays with a 10 degree tilt angle and a solar panel length of 1720-1920mm.
ValkPro+
The Van der Valk ValkPro+ PV mounting system is available in East-west and South-facing configurations and can be installed at a tilt angle of 10 degrees. The system can be used for both landscape and portrait arrays. Taking only three minutes per panel to assemble, the ValkPro+ is very quick and easy to install in your chosen configuration. The ValkPro+ has preinstalled metal connectors for earthing and lightning protection systems. The system only requires the minimum of ballast and is also suitable for 2 metre-long and high power panels.
