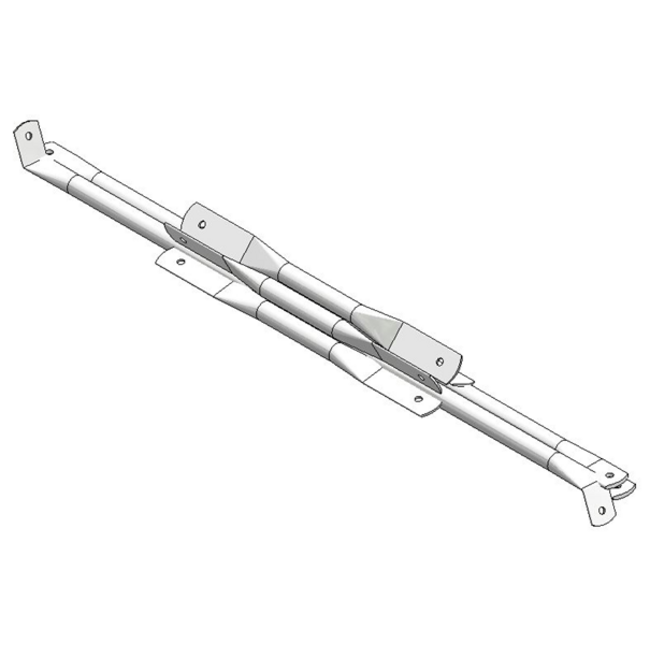

The ValkTriple support set from Van der Valk is used for a solar mounting system for three panels on a flat roof. This aluminium support set consists of various components and is used as support within the ValkTriple mounting system.

ValkDouble, ValkTriple, ValkQuattro

The ValkDouble, ValkTriple, and ValkQuattro series from Van der Valk are suitable for Landscape configurations with two, three, or four panels and have been developed according to European standards. The ValkTriple is ideal for garage units and the ValkQuattro for apartment buildings. The ValkDouble can be used in both cases. Additionally, all three can be used as ground-mounted installations. The Double, Triple, and Quattro feature universal intermediate and end panel clamps (H 28-50 mm) and a low height due to a small fixed tilt angle of 10º. The Double and Triple are suitable for panel dimensions of 1800mm - 1100mm. An additional extension set is available for panel widths up to max. 1134mm. The Quattro is suitable for panel dimensions of 1800mm - 1005mm. An additional extension set is available for panel widths up to max. 1100mm.
