GoodWe: Welke communicatie module past bij welke omvormer?

We krijgen veel vragen van klanten bij GoodWe, over welke communicatie module er bij welke omvormer past.

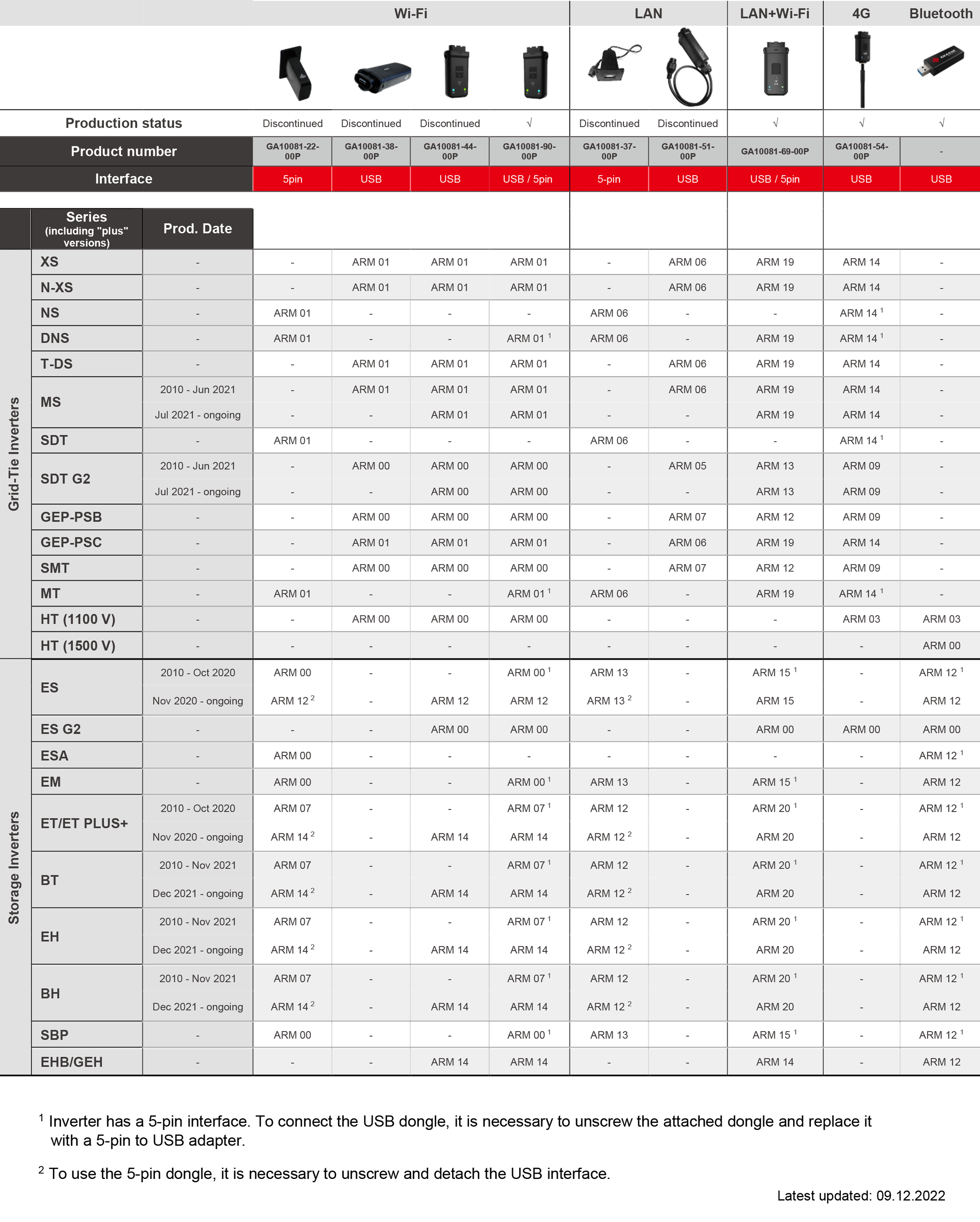

Hieronder vind je een uitgebreid overzicht en gedetailleerde tabel per artikelcode:

Klik op de foto om deze te vergroten

GoodWe: Welke communicatie module past bij welke omvormer?



1 Inverter has a 5-pin interface. To connect the USB dongle, it is necessary to unscrew the attached dongle and replace it with a 5-pin to USB adapter.
2  To use the 5-pin dongle, it is necessary to unscrew and detach the USB interface.



Code Item WIFI module LAN module WIFI+LAN Gecomineerd GSM
GW700-XS GoodWe Omvormer 700-XS, 1-Fase, 3.5A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW1000-XS GoodWe Omvormer 1000-XS, 1-Fase, 4.8A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW1500-XS GoodWe Omvormer 1500-XS, 1-Fase, 7.2A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW2000-XS GoodWe Omvormer 2000-XS, 1-Fase, 9.6A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW2500-XS GoodWe Omvormer 2500-XS, 1-Fase, 12A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW3000-XS GoodWe Omvormer 3000-XS, 1-Fase, 14.3A, 1 MPPT 1 IN, WIFI GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW3000D-NS GoodWe Omvormer 3000D-NS, 1-Fase, 13.6A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI GWLANMODULE
GW3000N-XS-AFCI GoodWe Omvormer 3000N-XS, 1-Fase, 14.3A, 1 MPPT 1 IN, WIFI, AFCI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3000T-DS GoodWe Omvormer 3000T-DS, 1-Fase, 13.6A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3000-DNS-30 GoodWe Omvormer 3000-DNS, 1-Fase, 14,4A 2 MPPT, 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5000D-NS GoodWe Omvormer 5000D-NS, 1-Fase, 22.8A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI GWLANMODULE
GW3600T-DS GoodWe Omvormer 3600T-DS, 1-Fase, 16A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3600-DNS-30 GoodWe Omvormer 3600-DNS, 1-Fase, 17,3A 2 MPPT, 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW4200T-DS GoodWe Omvormer 4200T-DS, 1-Fase, 19A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW4200-DNS-30 GoodWe Omvormer 4200-DNS, 1-Fase, 20,1A 2 MPPT, 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3600T-DS-AFCI GoodWe Omvormer 3600T-DS, 1-Fase, 16A, 2 MPPT 2 IN, WIFI, AFCI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3600-BH GoodWe Omvormer 3600-BH, 1-Fase, 16A, AC gekoppeld, incl. EZmeter en CT GW-DLS-WIFI G2 GW-DLS-COMBINED
GW5000T-DS GoodWe Omvormer 5000T-DS, 1-Fase, 22,8A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5000-DNS-30 GoodWe Omvormer 5000-DNS, 1-Fase, 24A 2 MPPT, 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5000-BH GoodWe Omvormer 5000-BH, 1-Fase, 21.7A, AC gekoppeld, incl. EZmeter en CT GW-DLS-WIFI G2 GW-DLS-COMBINED
GW4K-DT GoodWe Omvormer 4K-DT, 3-Fase, 6.4A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW4000-SDT-20-WIFI GoodWe Omvormer 4K-SDT, 3-Fase, 6,4A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5K-DT GoodWe Omvormer 5K-DT, 3-Fase, 8A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW4K-DT-AFCI GoodWe Omvormer 4K-DT, 3-Fase, 6.4A, 2 MPPT 2 IN, WIFI, AFCI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW6K-DT GoodWe Omvormer 6K-DT, 3-Fase, 9.6A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5000-SDT-20-WIFI GoodWe Omvormer 5K-SDT, 3-Fase, 8A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW3600S-BP GoodWe Omvormer 3600S-BP, 1-Fase, AC gekoppeld, Retrofit GW-DLS-WIFI GWLANMODULE
GW6000-SDT-20-WIFI GoodWe Omvormer 6K-SDT, 3-Fase, 9,5A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5K-DT-AFCI GoodWe Omvormer 5K-DT, 3-Fase, 8A, 2 MPPT 2 IN, WIFI, AFCI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW8K-DT GoodWe Omvormer 8K-DT, 3-Fase, 12.8A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW8000-SDT-20-RS485 GoodWe Omvormer 8K-SDT, 3-Fase, 12,8A, 2 MPPT 2 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5000S-BP GoodWe Omvormer 5000S-BP, 1-Fase, AC gekoppeld, Retrofit GW-DLS-WIFI GWLANMODULE
GW3648-EM GoodWe Omvormer 3648-EM, 1-Fase, 16A, 2 MPPT 2 IN, WIFI, Hybride, incl. EZmeter en CT GW-DLS-WIFI GWLANMODULE
GW3600-EH GoodWe Omvormer 3600-EH, 1-Fase, 16A, 2 MPPT 2 IN, WIFI, Hybride, incl. EZmeter en CT GW-DLS-WIFI G2 GW-DLS-COMBINED
GW10KT-DT GoodWe Omvormer 10KT-DT, 3-Fase, 16A, 2 MPPT 2 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW12KT-DT GoodWe Omvormer 12KT-DT, 3-Fase, 20,3A, 2 MPPT 3 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW10KT-DT-WIFI GoodWe Omvormer 10KT-DT, 3-Fase, 16A, 2 MPPT 2 IN, WIFI GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW12KT-DT-WIFI GoodWe Omvormer 12KT-DT, 3-Fase, 20,3A, 2 MPPT 3 IN, WiFi GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW15KT-DT GoodWe Omvormer 15KT-DT, 3-Fase, 24A, 2 MPPT 3 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW10K-SDT-20-RS485 GoodWe Omvormer 10K-SDT, 3-Fase, 16A, 2 MPPT 2 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW15KT-DT-WIFI GoodWe Omvormer 15KT-DT, 3-Fase, 24A, 2 MPPT 3 IN, WiFi GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW12K-SDT-20-RS485 GoodWe Omvormer 12K-SDT, 3-Fase, 19,1A, 2 MPPT 3 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5048-EM GoodWe Omvormer 5048-EM, 1-Fase, 24.5A, 2 MPPT 2 IN, WIFI, Hybride, incl. EZmeter en CT GW-DLS-WIFI GWLANMODULE
GW5000-EH GoodWe Omvormer 5000-EH, 1-Fase, 21,7A, 2 MPPT 2 IN, WIFI, Hybride, incl. EZmeter en CT GW-DLS-WIFI G2 GW-DLS-COMBINED
GW15K-SDT-20-RS485 GoodWe Omvormer 15K-SDT, 3-Fase, 24A, 2 MPPT 3 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW17KT-DT GoodWe Omvormer 17KT-DT, 3-Fase, 28,8A, 2 MPPT 4 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW17KT-DT-WiFi GoodWe Omvormer 17KT-DT, 3-Fase, 28,8A, 2 MPPT 4IN, WiFi GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW17K-SDT-20-RS485 GoodWe Omvormer 17K-SDT, 3-Fase, 27,1A, 2 MPPT 4 IN, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5K-BT GoodWe Omvormer 5K-BT, 3-Fase, WIFI, AC gekoppeld, HV, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW6K-BT GoodWe Omvormer 6K-BT, 3-Fase, WIFI, AC gekoppeld, HV, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW8K-BT GoodWe Omvormer 8K-BT, 3-Fase, WIFI, AC gekoppeld, HV, EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW20KT-DT GoodWe Omvormer 20KT-DT, 3-Fase, 31.9A, 2 MPPT, RS485 GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW20KT-DT-WiFi GoodWe Omvormer 20KT-DT, 3-Fase, 31.9A, 2 MPPT 2, WiFi GW-DLS-WIFI G2 GW-DLS-COMBINED GW-GSM-4G
GW5K-ET GoodWe Omvormer 5K-ET, 3-Fase, 8.5A, 2 MPPT 2 IN, WIFI, Hybride, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW10K-BT GoodWe Omvormer 10K-BT, 3-Fase, WIFI, AC gekoppeld, HV, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW5K-ET-BackupSPD2 GoodWe Omvormer 5K-ET, 3-Fase, 8.5A, 2 MPPT 2 IN, WIFI, Hybride, SPD Type 2, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW6.5K-ET-BackupSPD2 GoodWe Omvormer 6.5K-ET, 3-Fase, 10.8A, 2 MPPT 2 IN, WIFI, Hybride, SPD Type 2, incl EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW8K-ET-BackupSPD2 GoodWe Omvormer 8K-ET, 3-Fase, 13.5A, 2 MPPT 2 IN, WIFI, Hybride, SPD Type 2, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW25K-MT-RS485 GoodWe Omvormer 25K-MT, 3-Fase, 40A, 3 MPPT 6 IN, RS485 GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW10K-ET-BackupSPD2 GoodWe Omvormer 10K-ET, 3-Fase, 16.5A, 2 MPPT 2 IN, WIFI, Hybride, SPD Type 2, incl. EZmeter en CT’s GW-DLS-WIFI G2 GW-DLS-COMBINED
GW25K-MT-WiFi GoodWe Omvormer 25K-MT, 3-Fase, 40A, 3 MPPT 6 IN, WiFi GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW30K-MT-WiFi GoodWe Omvormer 30K-MT, 3-Fase, 48A, 3 MPPT 6 IN, WiFi GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW30K-MT-RS485 GoodWe Omvormer 30K-MT, 3-Fase, 48A, 3 MPPT 6 IN, RS485 GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW36K-MT-WIFI GoodWe Omvormer 36K-MT, 3-Fase, 53.3A, 3 MPPT 6 IN, WIFi GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW36K-MT-RS485 GoodWe Omvormer 36K-MT, 3-Fase, 53.3A, 3 MPPT 6 IN, RS485 GW-DLS-WIFI G2 GWLANMODULE G2 GW-DLS-COMBINED GW-GSM-4G
GW50KN-MT-RS485 GoodWe Omvormer 50KN-MT, 3-Fase, 80A, 4 MPPT 10 IN, RS485, AFCI, Display GW-DLS-WIFI GWLANMODULE GW-DLS-COMBINED
GW60KN-MT-RS485 GoodWe Omvormer 60KN-MT, 3-Fase, 96A, 4 MPPT 12 IN, RS485, AFCI, Display GW-DLS-WIFI GWLANMODULE GW-DLS-COMBINED
GW80K-MT GoodWe Omvormer 80K-MT, 3-Fase, 133A, 4 MPPT, RS485 GW-DLS-WIFI GWLANMODULE GW-DLS-COMBINED
GW80K-MT-RS485 GoodWe Omvormer 80K-MT, 3-Fase, 133A, 4 MPPT, RS485, AFCI GW-DLS-WIFI GWLANMODULE GW-DLS-COMBINED
GW100K-HT-No Display+RS485 GoodWe Omvormer 100K-HT, 3-Fase, 168A, 10 MPPT, RS485 GW-DLS-WIFI G2 GW-GSM-4G
GW110K-HT-No Display+RS485 GoodWe Omvormer 110K-HT, 3-Fase, 175.5A, 10 MPPT, RS485 GW-DLS-WIFI G2 GW-GSM-4G
