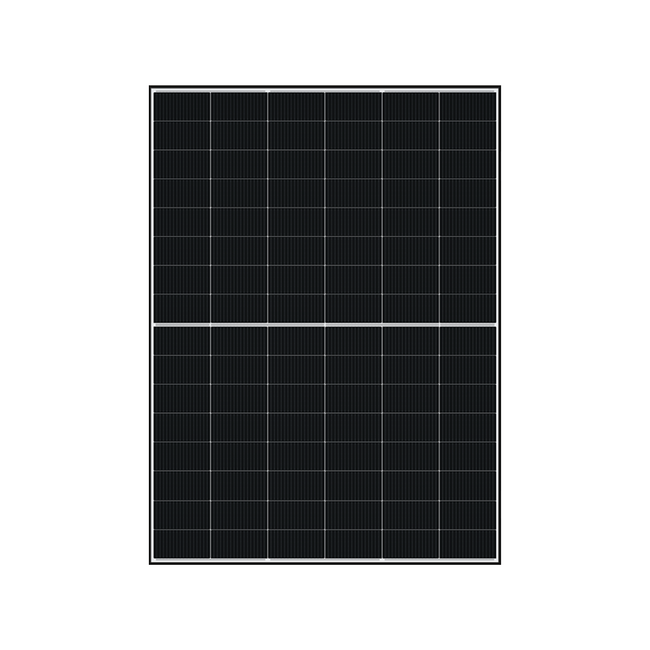

DMEGC 470Wp | Glass-Glass | Black-White

DMEGC 470Wp black-white/glass-glass

The DMEGC DM470G12RT-G48HBW-B solar panel is an n-type monofacial glass-glass solar panel with a nominal power output of 470 Wp and a module efficiency of up to 23.5%. Thanks to n-type monocrystalline TOPCon cells, this panel delivers a stable energy yield with very low degradation, resulting in high output throughout its full service life.

The robust glass-glass construction with 2 mm thermally strengthened glass on both the front and rear side increases mechanical strength and protects the solar panel against harsh environmental conditions. The panel is designed for a maximum system voltage of 1500 V DC and is equipped with an IP68 junction box, ensuring long-term reliability and safe installation in a wide range of conditions.
​​​​​​​
Warranty - The linear power warranty is valid for 30 years, and the product is covered by a 25-year warranty.

Features of the DM470G12RT-G48HBW-B

• N-type
• 96 cells
• Black-white
• Black frame
• MC4-EVO2A
• 1.1m cable length
• IP68
• Weight 24kg
• Dimensions: 1762×1134×30 mm

Benefits of n-type solar panels

N-type solar panels have 3 key benefits:

• N-type solar panels deliver a higher power output per square metre
• These panels have lower degradation compared to p-type panels
• You benefit from longer warranties
