JA Solar 540Wp | Glass-Glass | Black-White
- JA Solar
- N-Type | 120 cells | MC4-EVO2A | Black frame | 2063x1134x30
Article number:JAM60D42-540-LB
Supplier item code:JAM60D42-540/LB
Product information

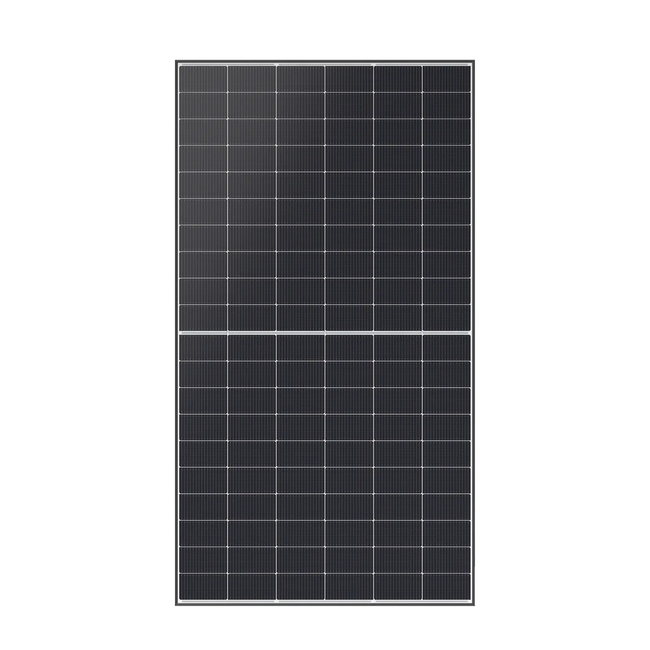

JA Solar 540Wp solar panel
The JAM60D42-540-LB from JA Solar has a power output of 540 Watt-peak and features 120 cells. This high-power panel is mono-facial. The JA Solar 540 features double 2.0mm glass and has dimensions of 2063 x 1134 x 30mm. There are 36 units on a pallet.
Features of the JAM60D42-540-LB
- 231Wp/m²
- N-Type
- 120 Cells
- Glass-Glass/Black-White
- Black frame
- MC4-EVO2A
- Weight 28.8kg
- Dimensions 2063x1134x30mm
Advantages of N-Type solar panels
N-type solar panels have 3 important advantages:
- N-type solar panels deliver a higher power output per square meter.
- These panels have lower degradation compared to P-type panels.
- You benefit from longer warranties.
Specifications
MPP power by STC
540
Cable length
1200
Power tolerance
0-3
Temperature coefficient Uoc
-0.25
Reverse current load
14.5
Documentation
AA) Datasheet JAM60D42 515-540 LB ENAB) JA Solar PV Double-glass Module Standard Installation Manual A19_202602 ENAC) JA Solar Module Product Limited Warranty 20260204 A13 ENAD) Certificate TUV IEC 61215 + 61730 JA Solar ENADZ) Certificate Ammonia JA Solar ENADZ) Certificate PID JA Solar ENADZ) Certificate Salt Mist JA Solar ENADZ) Certificate Sand Dust JA Solar ENADZ) JA Solar Certificate PFAS ENADZ) MSDS JA Solar Material Safety Data Sheet ENAE) Declaration PFAS-free JA Solar ENAEZ) Environmental Product Declaration JA Solar EN
